1962 EB0 wiring loom

Gibson bass guitars | EB-0 bass main page | technical information

This bass has a standard loom for an early sixties Gibson EB-0. As with any single pickup guitar, it has a very simple circuit: in this case, just a single volume control, and a single tone control, with two capacitors and an output jack. Have a look at the images, illustrations, and schematic to see how this loom is put together.

More info about this bass | More about EB-0 circuitry in general

1962 Gibson EB-0 wiring loom, installed in the bass
1962 Gibson EB-0 wiring loom, installed in the bass

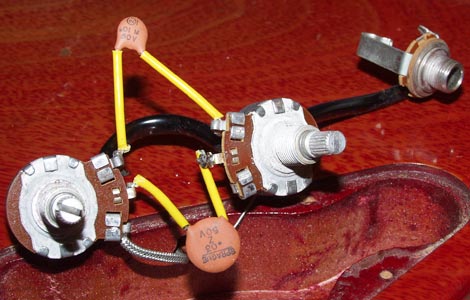

Two views of a 1962 Gibson EB-0 wiring loom, with the back control plate removed. Both pots are 500kΩ audio taper, marked 1346241, (manufacturer and date code: it signifies they were made by Centralab (134) in week 41 of 1962) and BA811-1053 (part number). These early sixties Centralab pots typically had their codes stamped onto the sides of the casing, requiring removal from the bass to read - but at least they are generally not covered with solder, so are always accessible.

1962 Gibson EB-0 circuit illustration

The above illustration demonstrates the exact circuit connections in the wiring loom above.

1962 Gibson EB-0 wiring schematic

Gibson EB-0 schematic that corresponds to the wiring in this bass.
