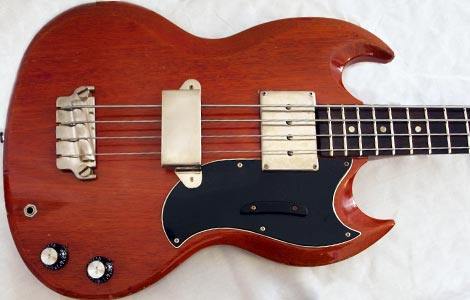

1964 Gibson EB-0

• Mahogany body • Set mahogany neck • Rosewood fingerboard, dot inlays • Short 30 1/2 inch scale • Single humbucking pickup • Translucent cherry red finish

The Gibson EBO was available from 1958, but only with an SG-style body from 1961. This 1964 bass has typical features of the period, most notably the nickel-plated pickup cover; it had been bakelite on '61-'63 EB basses, with nickel starting to be replaced with chrome by the end of the year.

There are several ways of finding out when a Gibson bass was made. The serial numbers up until about 1965 give a fairly reliable indication (although on instruments produced between 1965 until 1975 they can be very confusing), and combined with potentiometer codes and a look at the hardware used it's not hard to pin down most basses of this era to a single year. Both the serial number and potentiometer codes confirm this instrument to have been produced in 1964. Gibson did keep records of guitar serial numbers, and dates that they were shipped, however much of this information has been lost/destroyed, and Gibson customer service don't always have time to search for details. However, they did have the records for this bass, and kindly confirmed it was shipped from Gibson's Kalamazoo plant on August 27th 1964.

Gibson actually shipped 1133 EBO basses in 1964 - the highest number of any bass model they had produced up until that point - although this record was quickly trumped the next year, with a peak annual figure of 3018 EB0 basses shipped in 1969. See the Gibson EB0 shipping stats here. The US zone 1 list price in 1964 was $240, and it would stick at this level right into 1968.

The 1964 EB bass was musically identical to any EB-O produced in the 1960s, but the hardware and construction underwent subtle changes, which although not affecting the sound, did affect the look and feel of the guitar. The biggest change, visually at least, was the cover of the EB neck humbucker, previously plastic (compare with a 1962 EBO), now nickel-plated brass. Note, only the cover changed, not the pickup itself. It has been claimed that the early bakelite covered pickups have a better sound, but the thing to remember is that all EB humbuckers in the early 1960s were hand-wound to imprecise specifications; natural variation therefore occurs between every pickup in any batch, irrespective of the cover material.

The electronics cavity on early single pickup guitars and basses was a smaller size up until late 1965. At this time, the companion model, the EB3 had a larger, irregularly-shaped cavity (see the reverse side of a 1961 EB3 here). Towards the end of 1965, and in order to simplify production, both the EB0 and EB3 were unified in their control cavity routing, to a shape that remains today. See the reverse side of a 1966 EBO here. Another thing to note on this bass is the heel joint. This changed over the years of production, with a summary of these changes here.

Original EB-O basses were all fitted with the Gibson EB humbucker, however nickel plated pickup covers were only in use from the second half of 1963 until some point in 1965, although precisely when is hard to say. Compare this nickel-plated 1964 EB-O cover with the black plastic (Bakelite) cover of a 1962, or the chrome-plated cover from 1966. The humbucker under the cover did not change in this time of course. Later still, the cover would be re-sized, to be slightly taller and ever-so-slightly narrower (see the cover on a 1969 EB-O). A late sixties cover will not fit this mid-sixties bass.

The four corner screws hold the cover, and pickup in place. Removing these reveals the pickup itself; have a look under the cover here.

The view with the cover removed. The polepieces can still be seen, one under each string, with the two coils under the black tape on either side. The pickup is not held down, the only thing keeping it in place was the cover. There is typically a small square of foam under the pickup keeping it pressed upwards, although in many examples this foam has deteriorated, and been replaced.

Another interesting detail visible in this picture is the colour difference of the finish that has been exposed to light (top right). The Gibson cherry finish has faded significantly, but protected areas retain their original strong red colouration.

Gibson always used a substantial, solid bridge, typically mounted on solid posts ("sustain sisters") - the nickel-plated bar bridge fitted to this bass is no exception, but whilst heavy duty, it had no moving parts to allow separate string intonation tweaks. There are two grub screws, one on each post, that could move one side of the bridge or the other, so there was some possibility of adjustment, and in many cases this was sufficient. This bridge design changed slightly in the next year (compare with a 1966 EB0, although this also has an underbridge mute fitted), but it was not until 1967/68 that bridges were developed that had separate saddles - see the tune-o-matic bass bridge.

The handrest, like the rest of the hardware, is nickel plated. It attaches to the body via two screws, the lower one also going through the guitar's scratchplate. In many cases people did not find this useful as a handrest, and they were very commonly removed. In 1965 Gibson started producing these with chrome-plating, however their use on some models, such as the EB-O may not have been immediate. Have a look at at 1966 EB0 with chrome-plated handrest.

Headstock with inlaid Gibson logo, crown motif and screwed-on truss rod cover. The Gibson logo is the standard dotted i/open-b/open-o style. The position of the crown was lowered in early 1964 - to be centralised in the headstock. Compare with that of a 1962 EB-O. The truss rod cover is two-ply with white revealed edge.

The tuning keys are Kluson 538 type. The six-digit serial number dates this guitar to 1964; Gibson records actually confirm that this guitar was shipped in August of that year.

Fitted with standard 1960s Gibson bell knobs, numbered 0-10 and labelled VOLUME and TONE. The EB-O had the simplest of circuitry: one volume and one tone control. Have a look at EB-O circuit information here.

The translucent Cherry finish of Gibson EB basses (and SG guitars in general) has a tendency to fade over time, typically to a brownish colour, and most-likely as a reaction to sunlight; in fact it can be hard to tell whether certain late sixties EB basses were originally Cherry or Walnut. But early to mid sixties instruments changed colour somewhat differently, reacting to sweat or grease on the users hands. Many of these early EBs, like the one shown here, have paler, almost orange areas, particularly where handled most, primarily the far end of the neck.

1964 EB0 features and components

This bass has all the typical features of a mid-late '64 EB0, although is not quite the same as any shown in any Gibson catalog; the 1964 catalogue still shows the image from the previous (1962) catalogue, whilst the 1966 shows a bass with a newer bridge version with mute and Japanese-made closed-gear tuning keys.

Starting at the headstock: inlaid Gibson logo, with open o, b and dotted i. The crown inlay on the headstock is centered; older EBs had this positioned a little higher - see this 1962 EB0 for comparison. The headstock angle seems to be 17°; this was reduced to 14° sometime before 1966. The neck is still wide (width at nut 43mm) like earlier EB basses, but maybe 10% shallower than the very earliest (like this 1962 example). Like all '60s EB basses, the 30 1/2" scale calls for short scale strings - and although string choice is a matter of taste, these basses sound incredible with a set of flats.

The nickel bar bridge has no string mute - these were fitted as standard to the EB3 and later to the EB0, but at this stage they were not fitted as stock. Hardware is all nickel-plated. The most notable change from earlier versions being the pickup - although basically the same coil (EB neck humbucker), the previously bakelite cover had been upgraded to metal; nickel from late-63 into 1964 and chrome plated from then on. The hand rest shown here is nickel-plated, although this part is so often removed and replaced it is hard to say for sure when the change from nickel to chrome occurred. The machine heads are Kluson 538s - very widely used on Gibson (and many other brands) basses at this time.

'64 EB-0 wiring

The picture on the right shows the simple circuitry of this bass: just two potentiometers, one controlling volume, the other tone. the volume pot is made by CTS part number BA811-1053, dated week 20 of 1964 (May 1964). The tone pot is different; 250k part BA811-1831 and is dated week 2* of 1964 (the second digit is covered by solder). Click the image for a larger version, and a circuit wiring plan.

Gibson EB-0 soundclips

1960s EB0's are famous for their 'fat' neck humbucker tone, although they can really growl, especially when played with a pick near the bridge - for more clips check out the audio samples of a '66 EB0 through various vintage valve amps here

This clip of this bass was recorded directly into my computer sound card, with no pre-amp (bass set-up: round wound strings, treble and vol at 9/10).

This clip contrasts the tones of the EB0, but this time fitted with flatwounds and recorded at the same amp settings (1964 Ampeg B15, everything 5/10).
1) First played with a pick at the bridge - not especially hard, 2) then digging in for a real snarl. 3) Finally the bass played finger style at the neck.

Gibson EB-0 bass guitars for sale

Flyguitars.com is funded by its visitors. When you buy through links on our site we may earn an affiliate commission. For more info see terms and conditions.

1971 Gibson EB-0 Bass Walnut w / OHSC

San Diego, California, 921**, UNITED STATES OF AMERICA

$1395

1971 Gibson EB-0 In Walnut Finish
This Bass Is Located At IVG Sherman Oaks
In Good Overall Condition (Please See Photos)
Repaired Headstock As Shown
Finish Shows Some Cosmetic Playwear Including Small Dings, Marks, And Scratches Throughout
Original Hardware And Electronics
Made In Kalamazoo, MI
Mahogany Body And Neck With Rosewood Fingerboard And Dot Inlays
Original Humbucker Pickup In Neck Position
Original Frets Low But Playable
30 5" Scale Length
1 ... more

1959 1960 GIBSON EB-0 Slab Body BASS PICKGUARD USA

Houston, Texas, 770**, UNITED STATES OF AMERICA

$250

Early slab body pick guard . Cut a little to fit replace pickup. Just a shave off it
... more

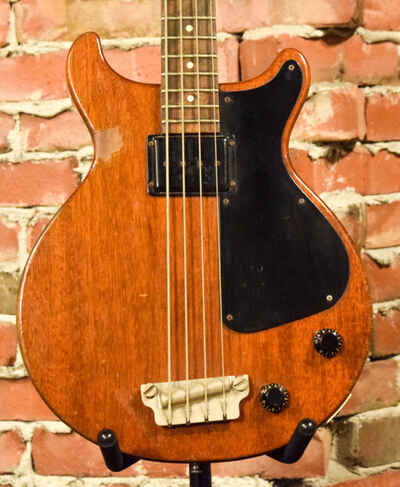

Gibson 1960 EB-0 Bass Guitar Cherry

Rochester, New York, 146**, UNITED STATES OF AMERICA

$5999

Here we have a very historic bass guitar from Gibson, an EB-0 from 1960.
This is a double cut solid body guitar, featuring banjo-style tuners and a one pickup design. Condition-wise this piece is in great playing and sounding condition, and bears typical signs of wear and tear. Small dings, checking, and scratches can be seen on the surface, as well as more checking and wear up the neck (as seen). This will include a non original case.... more

GIBSON 1968-7O SLOT-HEAD EB-O EB-3 BASS CASE BLACK TOLEX RED LINING VERY CLEAN!

Berlin, New Hampshire, 035**, UNITED STATES OF AMERICA

$349

FREE USA SHIPPING!
(for a limited time)
This month The Bass Palace will be listing 15 to 20 vintage cases from The Swami's own personal collection. Most of these are in primo condition and some are actually NOS. There are even some seldom-seen ones to be offered. These are the cream-of-the-crop if you are looking for a case worthy of your own special instrument. As an intro I am offering FREE shipping to the lower 48 thru 11 / 15 (a $40-60 savings)! But make no mistake, once the sale ... more

Gibson EB0 Bass 1968 Sparkling Burgundy Rare Factory Finish OSC

Manville, Rhode Island, 028**, UNITED STATES OF AMERICA

$2500

This a Rare Factory Custom Finish. Sparkling Burgundy. Thebass is in nice shape Unfaded deep Burgundy color & very light horizontalchecking The bass is all original but has suffered a crack to its controlcavity. The crack has been repaired & touched up. See photos Still a greatbass that plays great & sounds like an EB0. Great looking rare bass. Comesin original nice shape soft shell case
... more

Vintage 1968 Gibson EB-0 Bass Guitar 5 String

Dayton, Ohio, 454**, UNITED STATES OF AMERICA

$1200

This vintage Gibson EB-0 Bass Guitar is a true gem for any musician. With its customized 5 string design and powerful sound, it's sure to impress any bass player. The guitar has been well-maintained and has a beautiful finish that shines under any lighting.

The brand speaks for itself, with a reputation for quality that Gibson has built over the years. This electric bass guitar is perfect for any music style and is sure to make a statement in any band. Whether you're a ... more

Gibson Classic 1966 EBO Bass Guitar

Adrian, Michigan, 492**, UNITED STATES OF AMERICA

$2100

This is a rare and collectible 1966 Gibson Classic EBO bass guitar in a stunning red color. With its 4-string configuration, this electric bass guitar is perfect for any musician who wants to make a statement. The Gibson brand is known for its quality and excellence, and this Classic series bass guitar is no exception. Whether you're a seasoned musician or just starting out, this bass guitar is sure to impress. It's perfect for playing a wide range of musical styles and is ideal for both live ... more

1968 Gibson EB-0 Bass Rare Slotted Head w / Original Case (EXC ) Stunning!!

Racine, Wisconsin, 534**, UNITED STATES OF AMERICA

$3995

1968 Gibson EB-0 Bass w / Original Case (EXC ) Stunning!!. Slotted headstock with original Gibson tuners!! Perfect for the collector!! This bass is in exceptional condition and so is the original case!! You will not find one in better condition!! Simply amazing!! Has new strings and comes with a beautiful vintage ??Made in Mexico?? leather strap!! Everything 100% original!! Thanks for looking!!
... more

1969 Gibson EB-0 one owner bass with original custom hard sided case.

Patchogue, New York, 117**, UNITED STATES OF AMERICA

$2000

1969 Gibson EB-0 one owner bass with original custom hard sided case. See pic of original owner with the bass in the early ?70s ! Both the bass and case show wear from decades of use. There are scuffs, scratches, dings, and dents as you would expect. There is a split in the headstock that extends for approximately 7 inches, see photo. Electronics appear to be untouched all original. As shown in pic, date code on pot reads 6833, so bass was built in late 1968 or possibly early 1969. Serial number... more

Vintage Early 1960's Gibson EB-0 / EB-2 Bass Bridge Mute

Brooklyn, New York, 112**, UNITED STATES OF AMERICA

$175

Vintage Early 1960's Gibson EB-0 / EB-2 Bass Bridge Mute
Very Good Condition Sold by a mom & pop music store in Brooklyn NY
... more

EPIPHONE by GIBSON EBO BASS

Fort Wayne, Indiana, 468**, UNITED STATES OF AMERICA

$225

Absolute Mint condition This would be a great Christmas present for the professional or aspiring rock bassist

. This Epiphone by Gibson EBO Bass is a solid body guitar with a beautiful cherry finish. The instrument is designed for right-handed players and features a 4-string configuration. The neck is made of cherry and has 20 frets. The fretboard is made of rosewood, which gives the guitar a smooth and comfortable feel.

The body is made of mahogany, which is a durable ... more

Vintage 1966 Gibson EB-0 Bass Cherry

Tarzana, California, 913**, UNITED STATES OF AMERICA

$1995

Vintage 1966 Gibson EB-0 Bass Cherry
Up for sale, here's an incredible Player's grade Original 1966 Gibson EB-0 short scale Bass in its original Cherry finish with a really cool Mojo and patina
7 2 Lbs, 30 5" scale with low serial # 320XXX, which indicates it could be even late '65 but because of the bridge we can consider ir 1966
When it comes to "Player's" instruments, it means you're gettin a true vintage guitar that has been really well played for years from diverse stages to ... more

Gibson EB-0 BASS with Slotted Headstock 1969 - Cherry

Jackson, Michigan, 492**, UNITED STATES OF AMERICA

$2795

Another New Arrival!
We offer a RARE Slotted Headstock Gibson EB-0 Bass Guitar "Short Scale" S / N: 928316 which I believe makes this a 1969These had what they called "Mudbucker" pickups which sound much fuller and deeper than your standard pickups. They sound really cool!I understand that these short scale basses are easier for guitar player to pick and play. I have to agree It all works as it should This Bass has seen to use but is just honest playing and not abused. Check out the pics and ... more

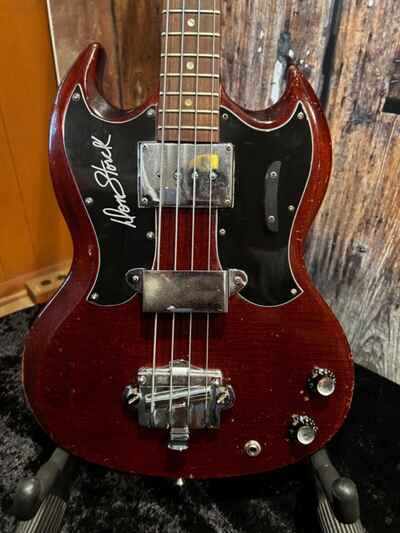

Vintage 1967 Gibson EB-0 Short Scale 4 String Bass - Cherry - Don Storck Custom

Edmond, Oklahoma, 730**, UNITED STATES OF AMERICA

$2500

Awesome bass. Original electronics and hardware. Still has the string dampener and it works! Great tone. This is a two-owner guitar from Oklahoma City. It was played lovingly by its original owner, Don Storck, from the time that he purchased it new by in 1967 at different gigs over the years. It has earned its wonderful patina from years of playing, and it looks great. It has all the expected finish checking that you would expect to see on a guitar of this vintage. The second pick guard was ... more

Gibson EB-0 1970s Short Scale Bass

Flower Mound, Texas, 750**, UNITED STATES OF AMERICA

$1499

For Sale is my 70s EB-0. The finish is an aged heritage cherry. Beautiful. It plays great and the humbucker packs some serious punch. It's strung with tape wounds which make this a thump machine. It has a 3-way switch which switches between different tone caps. Super handy for tweaking tone. No breaks in the neck, frets have life left. A great bass. Comes with a gig bag. I'll pack it nice and safely
" Crafted in the United States the Gibson EB-0 embodies a classic era of bass guitar design.... more

Gibson EBO Bass Guitar 1967 solid wood cherry finish made in the US with case

Lebanon, New Jersey, 088**, UNITED STATES OF AMERICA

$2100

This Gibson EBO Bass Guitar is a rare gem for any musician. Crafted in the US in 1967, this solid wood guitar features a cherry finish that shines under any lighting. With its 4-string configuration and electric bass type, it's perfect for any right-handed player looking for a high-quality instrument The guitar comes with a case, making it easy to transport and protect while on the go. Its brand, Gibson, is well-known for producing top-of-the-line guitars that are both durable and powerful. This... more

1965 Gibson EB-0 Short Scale Bass Guitar w / Original Case READ DESCRIPTION

Missoula, Montana, 598**, UNITED STATES OF AMERICA

$2796

Bass has some finish cracks all over the body. See pic 4, I??ve tried to capture it. Very common for its age. No major blemishes, but not mint condition. Mute still works great, all original pickups still sound like they did in the 60s.

I have the original case, but it wasn??t easily accessible at the time of posting. I may have updated or would be happy to add pics if a serious buyer wants them. Case is in rugged condition.

Thanks. Please ask questions before bidding. ... more

Gibson EB-O Electric Bass Guitar 1972 Walnut Kalamazoo Short Scale Humbucker

New Brunswick, New Jersey, 089**, UNITED STATES OF AMERICA

$1700

Not Being A Bass Maven, The Specs On This Is The Closest That I Could Find Online So Don??t Hold Me To Every Single Detail. First Off I??ve Had This Bass For A Long Time & Used It Sparingly. It??s Been Kept In A Case & Is In Great Condition. Plays Good, Sounds Awesome, Electronics Are Quiet, No Frets Buzz & Really Has No Issues. Seems Like It??s All Original So Let??s Get Into The Details
Gibson 1972 EB-O Mahogany Body(Walnut Finish), 3 Piece Maple Neck w / 22?? Short Scale 21 ... more

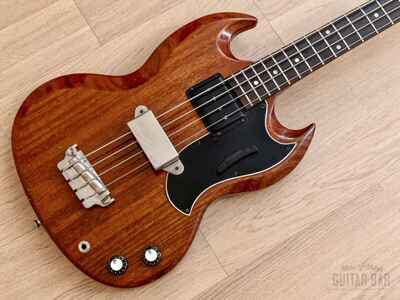

1963 Gibson EB-0 Vintage Short Scale SG Bass Cherry w / Mudbucker, Case
