1964 EB0 wiring loom

Gibson bass guitars | EB-0 bass main page | technical information

This is a typical mid 1960s Gibson EB-0 bass circuit, in every way but for one: the tone pot has a smaller value than the volume, at 250kΩ (part BA-811-1831), compared to the usual 500kΩ. This is contrary to the standard schematic, and the January 1965 parts list, both published by Gibson. The volume pot is 500kΩ audio taper, with code 1346420, (which signifies manufacture by Centralab in week 20 of 1964) and part number BA811-1053.

More info about this 1964 EB-0 | More about EB-0 circuitry in general

But this is perhaps not an all that big exception, the aforementioned January 1965 parts list suggests the 250kΩ pot (BA-811-1831) for the tone control of all other Gibson single-pickup Gibson basses, and for one (of two) of all twin-pickup basses, except the EB6. A different (shorter shaft) 250kΩ pot would also seem to be widely used on the Epiphone Newport, although often with different capacitors.

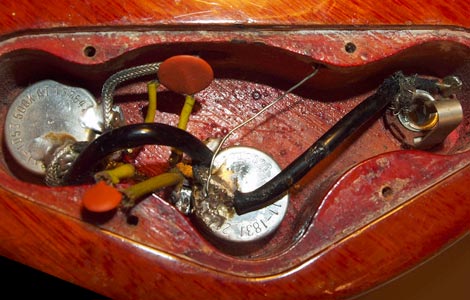

1964 Gibson EB-0 wiring loom, in situ
1964 Gibson EB-0 circuit illustration

The above illustration demonstrates the exact circuit connections in the wiring loom above.

1960s Gibson EB-0 wiring schematic

The Gibson EB-0 schematic almost corresponds to the wiring in this bass, save the value of the tone potentiometer.
