1966 EB0 wiring loom

Gibson bass guitars | EB-0 bass main page | technical information

This bass has a standard loom for a mid sixties Gibson EB:
More info about this 1966 Gibson EB-0 | More about EB-0 circuitry in general

1966 Gibson EB-0 bass wiring loom. Like other single pickup Gibson EB bass guitars, controls are just two potentiometers, one to control volume, and one for tone. In this case, these pots are identical: 500kΩ audio taper, numbered 1376546, (which signifies they were made by CTS in week 46 of 1965) with part numbers BA811-1053. This circuit is wired slightly differently from early EB0s (see a 1962 EB0 wiring), but electronically it is identical. Note, by this stage, the control cavity has been enlarged (now a uniform size for all guitars and basses), and a metal shielding tray is fitted.

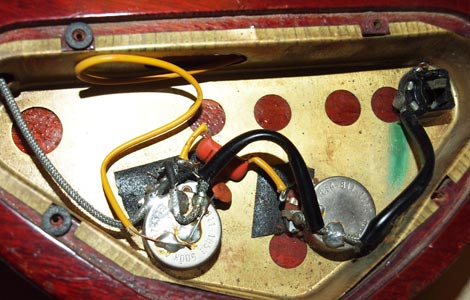

1966 Gibson EB-0 wiring loom, installed in the bass
1966 Gibson EB-0 wiring loom
1966 Gibson EB-0 circuit illustration

The above illustration demonstrates the exact circuit connections in the wiring loom above.

1966 Gibson EB-0 wiring schematic

Gibson EB-0 schematic that corresponds to the wiring in this bass.
