Gibson G3 bass single coil pickup

Gibson bass guitars | Part descriptions | Pickups | Gibson G3 bass single coil pickup

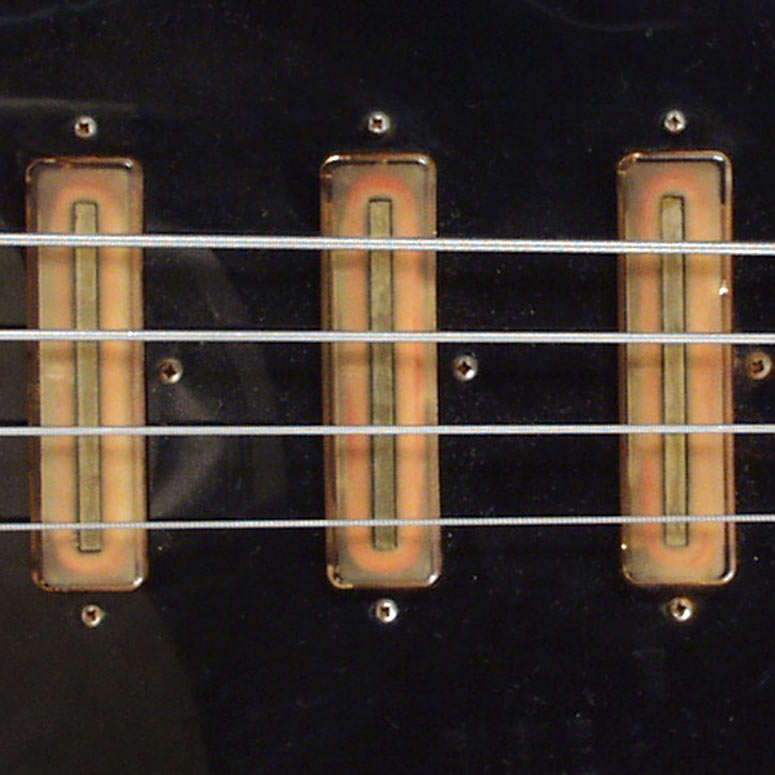

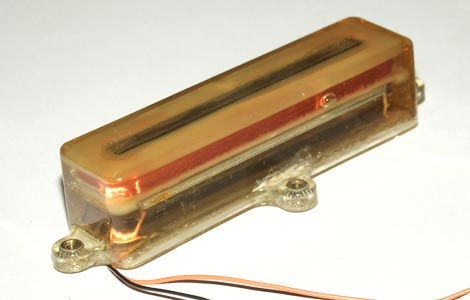

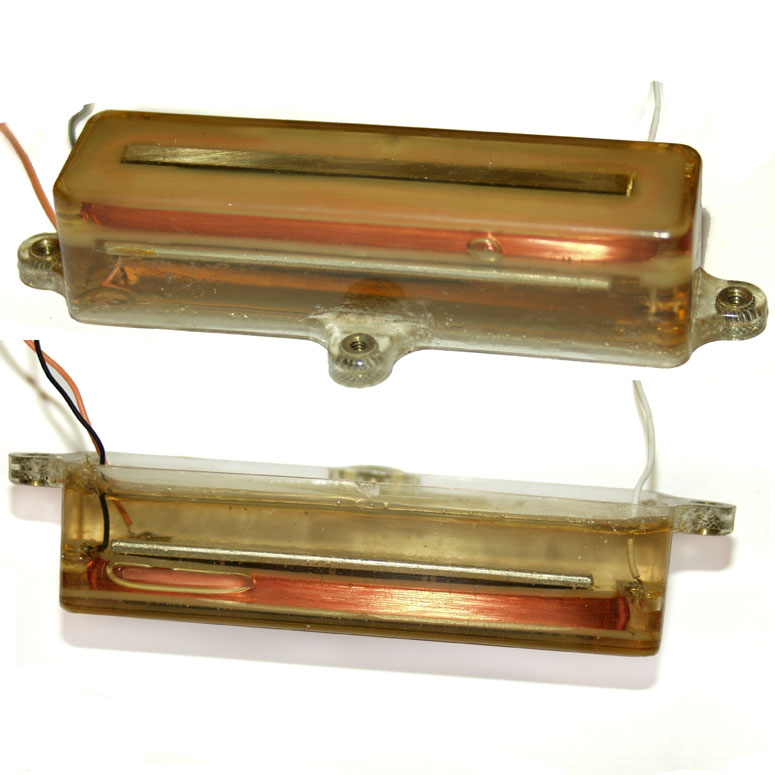

The Gibson G3 pickups, and the innovative electronics associated with them were the product of Gibson designer Bill Lawrence, for a "bright/low" tonality. The pickup itself was simple: a single coil around a Alnico magnet, both embedded in clear resin. Thanks to the translucent covers used in early examples, we can see exactly what is inside. Although the pickups were single coil, they were wired together into various humbucking configurations: the controls did not allow for any pickup to be selected alone - see the description of controls for more information on this.

The three pickups are slightly different, with different part numbers, different coloured leads, and presumably slightly different characteristics: 13109 (front - one black lead), 13110 (middle - two orange leads), 13111 (back - one red lead).

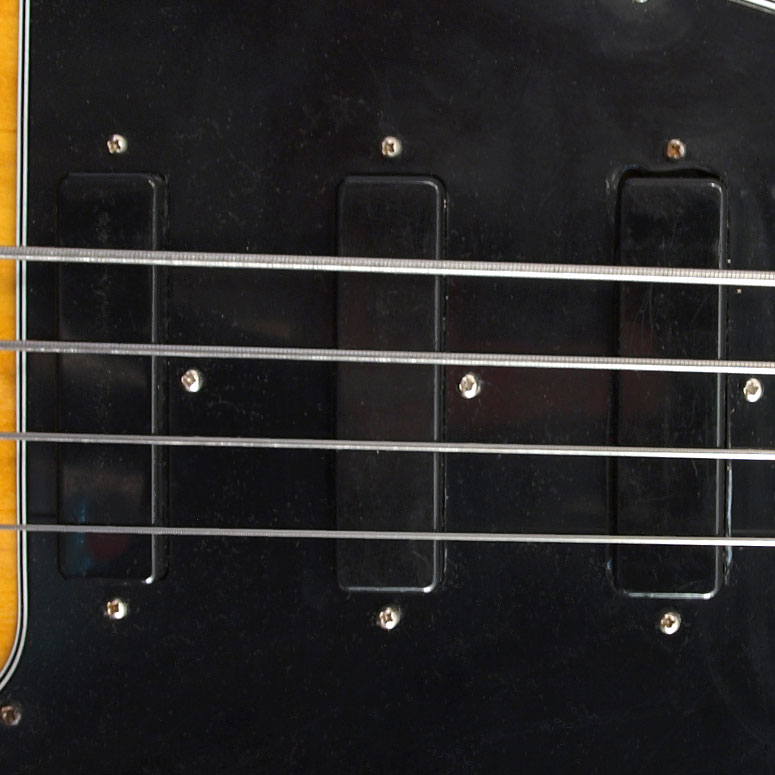

Later examples had black covers rather than the clear. Dimensions (excluding mounting tabs): 79mm x 20mm x 16mm.

Some basses fitted with this pickup

1976 Gibson G-3
1978 Gibson G-3 bass

Soundclips

Have a listen to a 1976 G-3, all three pickups activated - Gibson described this setting as a "buck-and-a-half". More G-3 soundclips here.
